Painting
Guidelines
Picking the right paint color
When painting TrimLogic, choosing the right paint type and color will ensure a truly low maintenance, long-lasting painted finish. Using paint that does not meet TrimLogic guidelines may cause the product to overheat, leading to undesirable product defects such as warping, oil canning, or buckling. When you follow the required guideline, you help ensure long-lasting exterior protection and low-maintenance performance.
General painting guidelines
Only use 100% water-based acrylic paint approved for exterior application
Wipe with a dry cloth prior to painting to ensure surface is clean
TrimLogic does not need priming or special prep
TrimLogic must be painted within 180 days of installation
LRV – Light Reflective Value

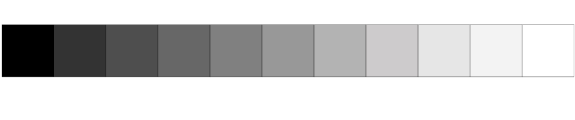

The LRV number represents the percentage of light reflected by a color. The higher the LRV number, the more light is reflected. The lower the LRV number, the more light is absorbed. To help understand the scale, true white has a LRV rating of 100 and true black has LRV rating of 0. You can see this on the chart below.
Exterior trim is constantly exposed to sunlight. When not reflected, light is absorbed as energy and converted to heat. Excessive heat can cause trim and siding to expand and contract. This results in bowing, buckling, or deforming of the product.
To avoid this, we recommend determining the LRV of your desired color before using and follow TrimLogic's guidelines on this page. If you follow TrimLogic's paint & color selection guideline and install instructions you will ensure long-lasting and low-maintenance exteriors.
Paint Manufacturers will often display the LRV on paint swatches and/or on their website. If you cannot find the LRV of a paint you should not use it on TrimLogic products.
Recommended Colors
The collection of colors listed below are readily available or have an LRV above 55. When these colors are produced in an exterior 100% acrylic latex paint, they meet TrimLogic’s painting guidelines to help ensure the best overall product performance.
STEP 1: DETERMINE YOUR DESIRED COLOR CHOICE
Each color below lists the specific manufacturer color name, number and LRV rating. Be sure to use this exact information when selecting your final color choice.
STEP 2: DETERMINE THE RIGHT PAINT TYPE
TrimLogic recommends the use of the below exterior 100% acrylic latex paints from PPG:
- PPG Acri-Shield® Max Exterior Acrylic Latex
- PPG Sun Proof® Exterior Acrylic Latex
STEP 2: DETERMINE THE RIGHT PAINT TYPE
TrimLogic recommends the use of the below exterior 100% acrylic latex paints from Sherwin Williams:
- Emerald® Exterior Acrylic Latex
- Duration® Exterior Acrylic Latex
- Resilience® Exterior Acrylic Latex
STEP 2: DETERMINE THE RIGHT PAINT TYPE
TrimLogic recommends the use of the below exterior 100% acrylic latex paints from Benjamin Moore:
- Regal® Select Exterior Acrylic Latex (High Build)
- Regal® Select Exterior Acrylic Latex
- Element Guard® Exterior Paint
STEP 3: VISIT PAINT MANUFACTURER STORE OR WEBSITE
Before making your final color choice we recommend you view an actual paint sample or color swatch which are available by visiting a local paint store or by ordering online.
Explore our curated color charts below, showcasing a selection of hues from various manufacturers that align perfectly with TrimLogic's guidelines for exterior 100% acrylic latex paint. Each of these colors boasts an LRV of over 55, ensuring they meet our standards for quality and vibrancy.
If you want to use a color that is not shown, ensure it also has an LRV above 55 to meet our standards for quality and vibrancy.
WARNING: DO NOT ADJUST OR CUSTOMIZE COLORS AT LOCAL PAINT STORES!
WARNING
Production of custom color formulations at local stores are not controlled. Formulation variability can affect the Light Reflective Value (LRV) of the paint leading to higher heat absorption that can cause excess movement and damage to TrimLogic product.
Don't see the exact color you need? See more approved colors to use on TrimLogic available via our Custom Colors & Specialty-Orders process.
DELICATE WHITE
PPG1001-1
LRV: 88.0
GYPSUM
PPG1006-1
LRV: 83.0
OFF WHITE
PPG1024-1
LRV: 76.0
WILLOW SPRINGS
PPG1007-1
LRV: 79.0
OFF WHITE
PPG1024-1
LRV: 76.0
TOASTED ALMOND
PPG1097-3
LRV: 61.0
WHISKERS
PPG1025-3
LRV: 60.0
MOTH GRAY
PPG1024-4
LRV: 58.0
TUNDRA FROST
PPG1009-1
LRV: 74.0
ANTIQUE WHITE
PPG1024-2
LRV: 72.0
BONE WHITE
PPG1085-2
LRV: 70.0
HEAVY CREAM
PPG1098-2
LRV: 71.0
EARLY EVENING
PPG1006-3
LRV: 58.0
MOTH GRAY
PPG1024-4
LRV: 58.0
Milky Way
SWVS301
LRV: 58.1
Vintage Lace
SWVS303
LRV: 58.1
Frilly
SWVS304
LRV: 62.3
Cake Mix
SWVS315
LRV: 63.7
Neutrality
SWVS335
LRV: 58.6
Touch Of Cream
SWVS346
LRV: 81.1
Wafer
SWVS347
LRV: 62.8
Tortilla
SWVS351
LRV: 74.4
Cotton Sheets
SWVS353
LRV: 74.3
Pine Nuts
SWVS356
LRV: 60.8
Shaded Gray
SWVS369
LRV: 61.0
Tear Drop
SWVS399
LRV: 75.7
Silverpalm
SWVS430
LRV: 60.1
Silver Gray
2131-60
LRV: 61.3
Revere Pewter
HC-172
LRV: 55.5
Mt. Rainier Gray
2129-60
LRV: 60.3
Gray Owl
OC-52
LRV: 65.8
Simply White
2143-70
LRV: 91.7
Sandy White
2148-50
LRV: 73.5
Mayonnaise
2152-70
LRV: 90.5
Monterey White
HC-27
LRV: 77.4
Abalone
2108-60
LRV: 63.1
French Canvas
OC-41
LRV: 75.0
Floral White
OC-29
LRV: 81.8
White Wisp
OC-54
LRV: 80.1
Horizon
OC-53
LRV: 74.0
Niveous
OC-36
LRV: 76.9
Seashell
OC-120
LRV: 81.6
Fog Mist
OC-31
LRV: 71.6
Montgomery White
HC-33
LRV: 75.3
Waterbury Cream
HC-31
LRV: 58.3
Stonington Gray
HC-170
LRV: 59.8
Wickham Gray
HC-171
LRV: 68.9
Guilford Green
HC-116
LRV: 58.1
Kittery Point Green
HC-119
LRV: 56.6
Yarmouth Blue
HC-150
LRV: 56.2
Hawthorne Yellow
HC-4
LRV: 73.0
Manchester Tan
HC-81
LRV: 64.4
Grant Beige
HC-83
LRV: 56.7
Abingdon Putty
HC-99
LRV: 60.5
Hazy Skies
OC-48
LRV: 59.1
Color Disclaimer: Colors may not be exactly as shown. This is due to the variance in digital presentation and individual monitor calibration. Please base your color selections on actual paint color samples or color swatches provided by manufacturers before making your final decision.
Custom Color & Special Order Paints
TrimLogic has partnered with PPG to create a special-order & custom color match process. When special-ordered, these paints are formulated by PPG with a special solar reflective pigments that reduce heat absorption allowing them to be used on TrimLogic products. This paint formulation, available via special-order, expands the range of colors approved for use on TrimLogic materials including black, deep blues, dark browns and more.
STEP 1: IDENTIFY YOUR COLOR
Browse selection of offered colors from PPG in their Acri-Shield Max paint product or identify a desired paint color name and product number from another manufacturer.
STEP 2: CONTACT US TO START SPECIAL ORDER PROCESS
Contact TrimLogic Customer service via (888) 219-8746 or tlsupport@trim-logic.com to order.
Approved colors available for special-order
When formulated in PPG's Acri-Shield Max (exterior latex paint) and special ordered through TrimLogic customer service even darker colors can be used on TrimLogic due to special color reflective pigments used.
WARNING: DO NOT ADJUST OR CUSTOMIZE COLORS AT LOCAL PAINT STORES!
WARNING
Production of custom color formulations at local stores are not controlled. Formulation variability can affect the Light Reflective Value (LRV) of the paint leading to higher heat absorption that can cause excess movement and damage to TrimLogic product.
